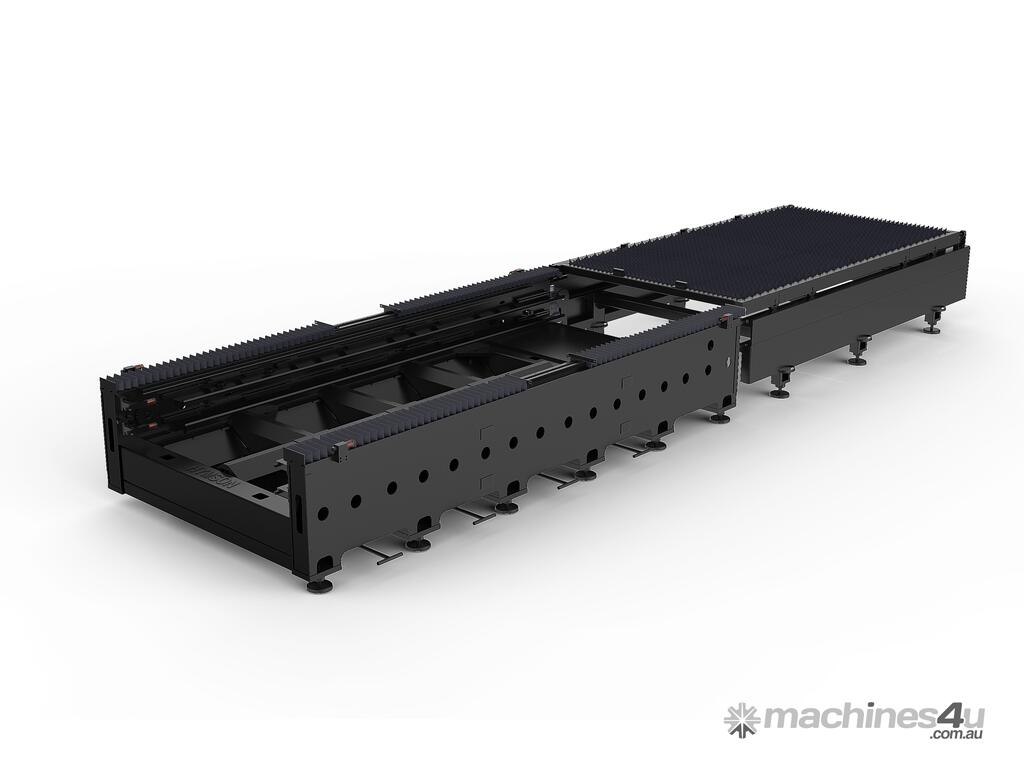

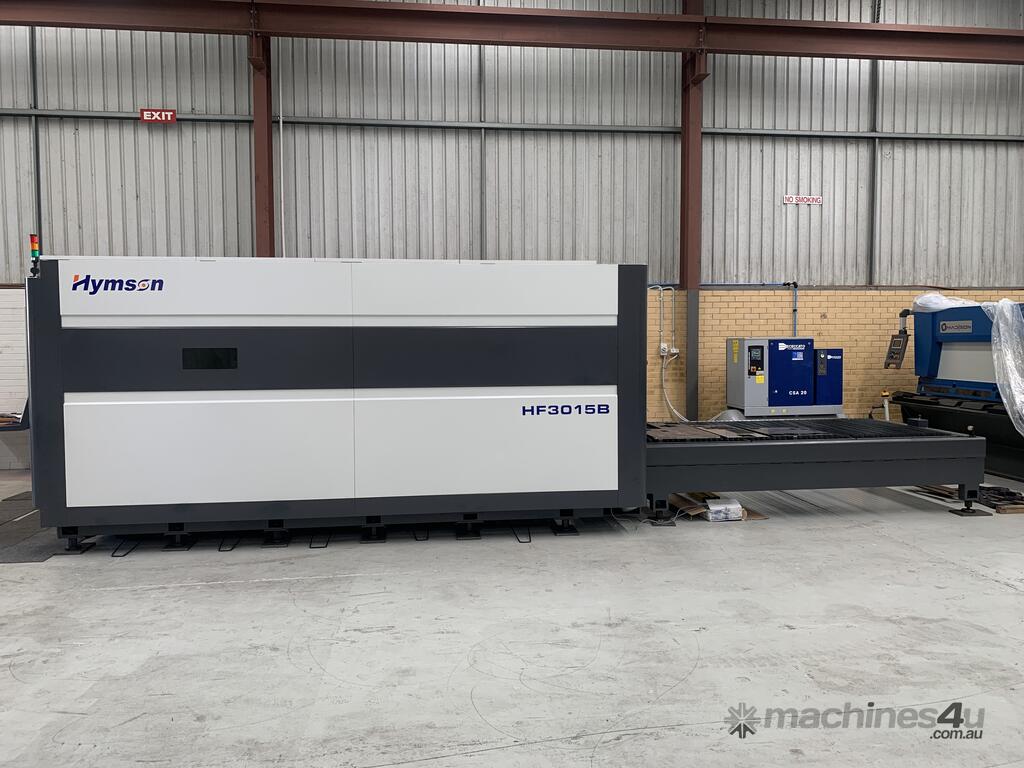

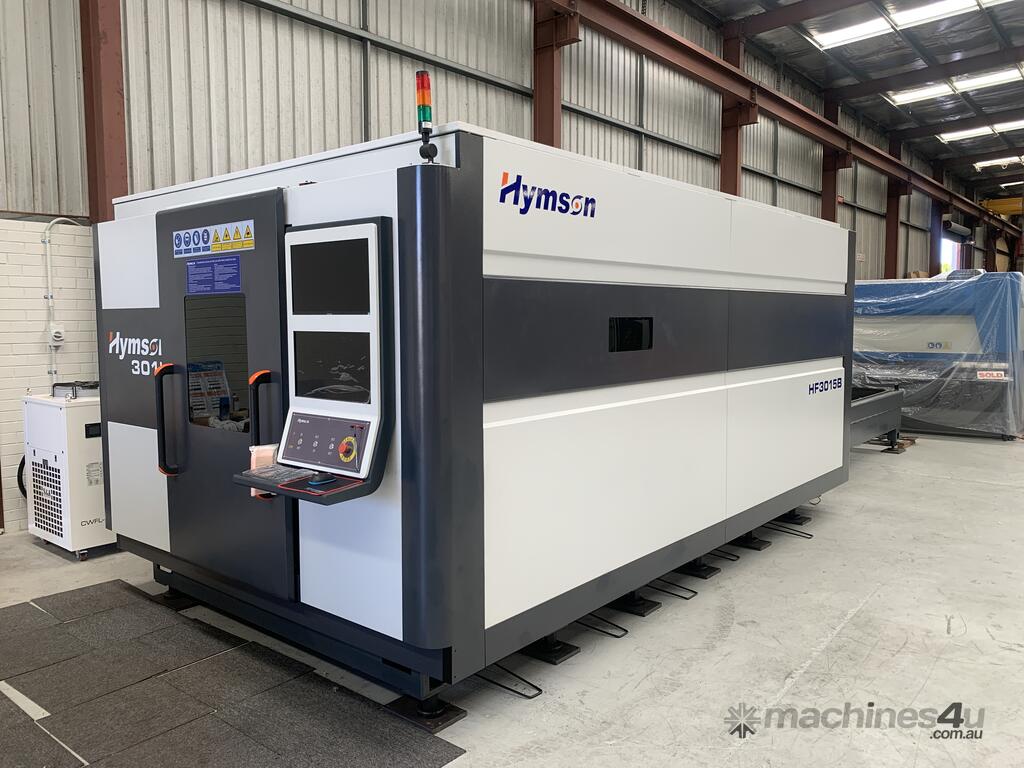

Hymson 6kw 3 x 1.5m Fiber Laser Cutting Machine

QLD,VIC,WA - Delivers Nationally

Hymson 6kw 3 x 1.5m Fiber Laser Cutting Machine :      $438,000 AUD ($481,800 Inc. GST)

  • Specifications
    Condition:
    New
    No. in Stock
    1
    Year:
    2020
    Make:
    Hymson
    Label Value:
    Description

    Processing area: 3000 x 1500 mm
    Accuracy: -
    X/Y-axis positioning: +/- 0.03mm
    X/Y-axis repeatable +/- 0.02mm
    X/Y- axis max. positioning speed: 120 m/min
    X/Y- axis max. acceleration: 1.0G
    Max. load of work table: 800 kg
    Weight: 8000 kg
    Machine construction: Hymson patent honeycomb welded structure

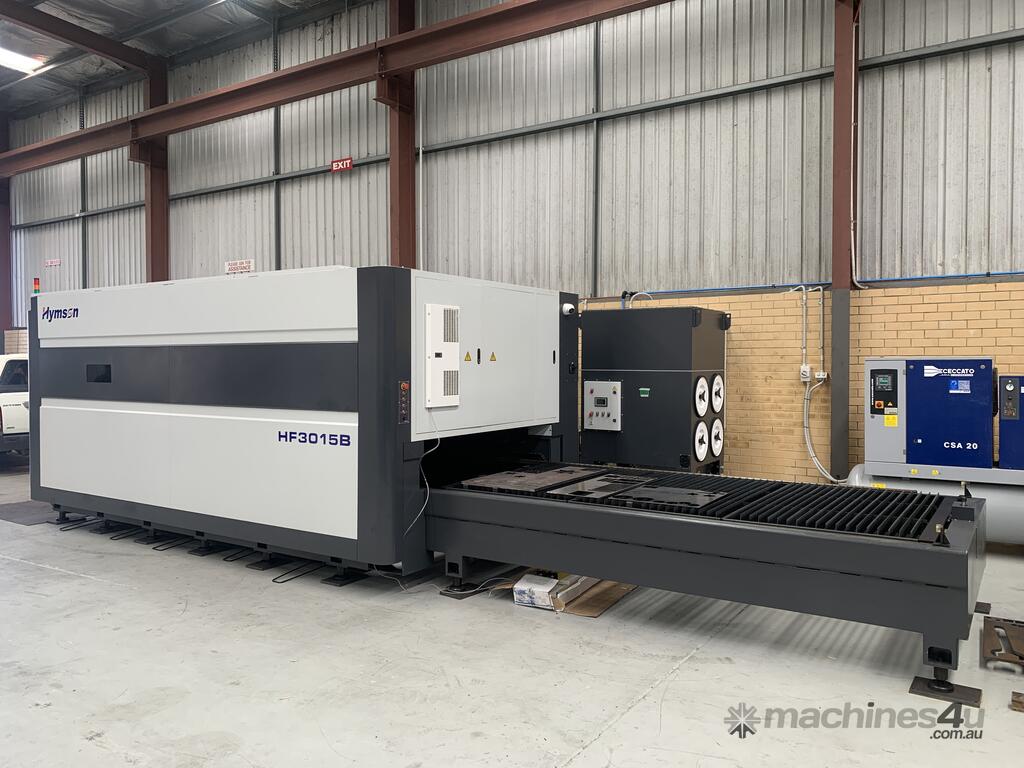

    Tables: Two exchangeable shuttle tables
    Enclosure: Fully enclosed with side and top covers
    Guards: Light guard

    Complete with: -
    – 6kw MAX Laser
    – Top Star Dust Collector
    – Consumable service package (see below)

    Main configuration and features
    Cutting head: RAYTOOLS (Swiss)
    Servo motors: SANYO DENKI (Japan)
    Reducer: APEX (Taiwan)
    Gear and Rack: APEX
    Guides: HIWIN (Taiwan)
    Gas Regulator AVENTICS (Germany)
    Automatic lubricating system for the guide rails
    Intelligent exhaust system

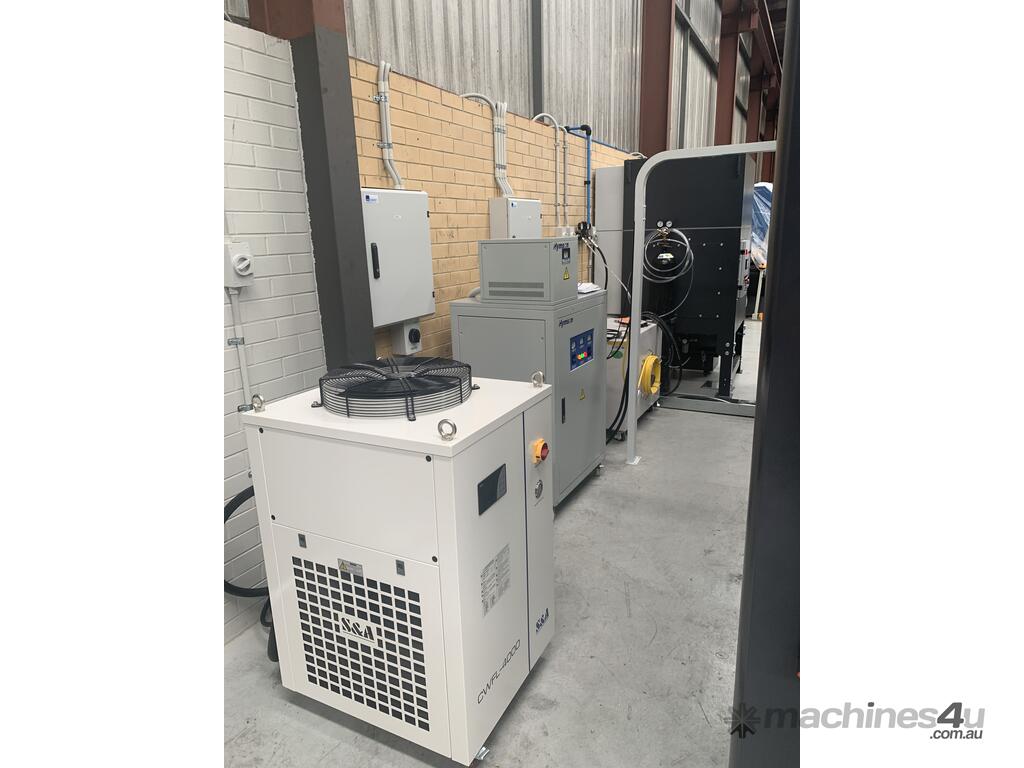

    Dual temperature-control water chiller
    CypCut control system with inner Nesting
    Separated electric stabilizer
    Auto-focus

    Consumables included: -
    4 each Single Nozzle 1.5, 2.0 and 2.5
    4 each Double Nozzle 1.0, 1.2, 1.5, 2.0. and 2.5.
    2 off Seal rings
    10 off Protective Lens
    1 off TTW sensor line
    1 off Sensor signal line
